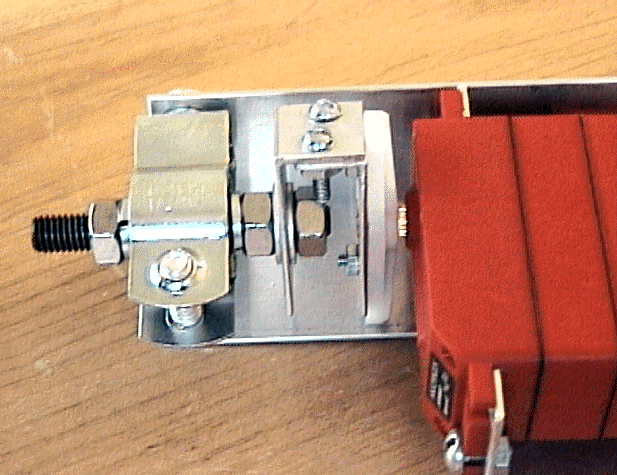

Close-up of new Upper Arm. The red servo connects to the bolt
shaft. The bolt shaft goes through both
bearings. The bearings are contained in a metal jacket which
attachs to the angle aluminum at the top.
Although the metal jacket attaches at only one place on top, extra
rigidity is provided by the servo's
spinning rotor. Significant weight and space savings are realized
with this design.
